Granite Sound Partyline Intercom - Loudspeaker Master Station GS-CMLS2

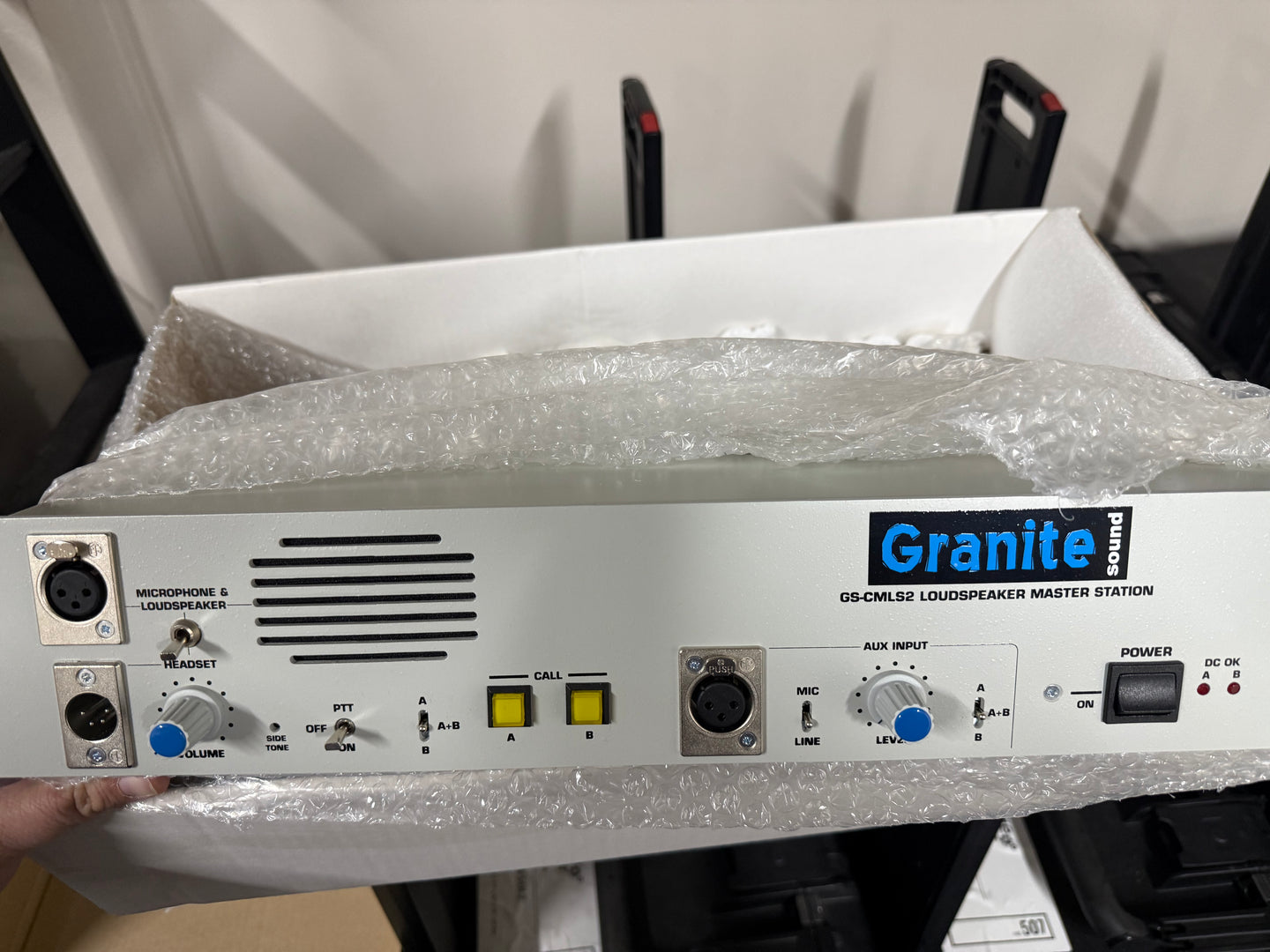

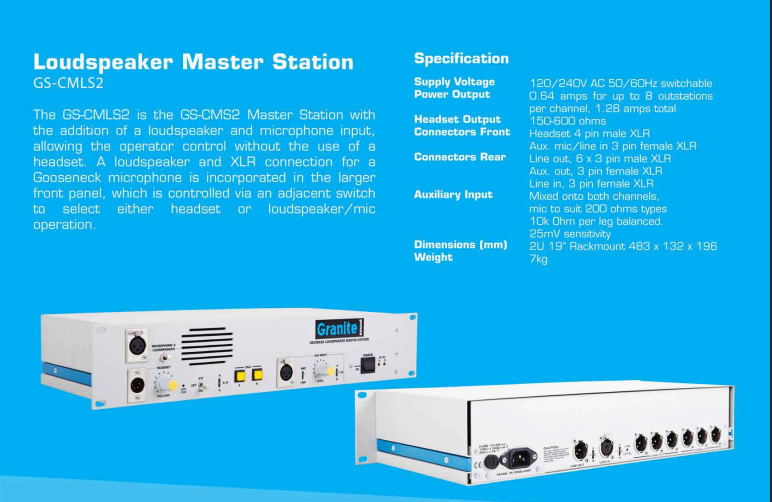

The GS-CMLS2 is the GS-CMS2 Master Station with the addition of a loudspeaker and microphone input, allowing the operator control without the use of a headset. A loudspeaker and XLR connection for a Gooseneck microphone is incorporated in the larger front panel, which is controlled via an adjacent switch to select either headset or loudspeaker/mic operation.

Specification

Supply Voltage: 120/24OV AC 50/60Hz switchable
Power Output: 0.64 amps for up to 8 outstations per channel, 1.28 amps total
Headset Output: 150-600 ohms
Connectors Front: Headset 4 pin male XLR
                                          Aux. mic/line in 3 pin female XLR

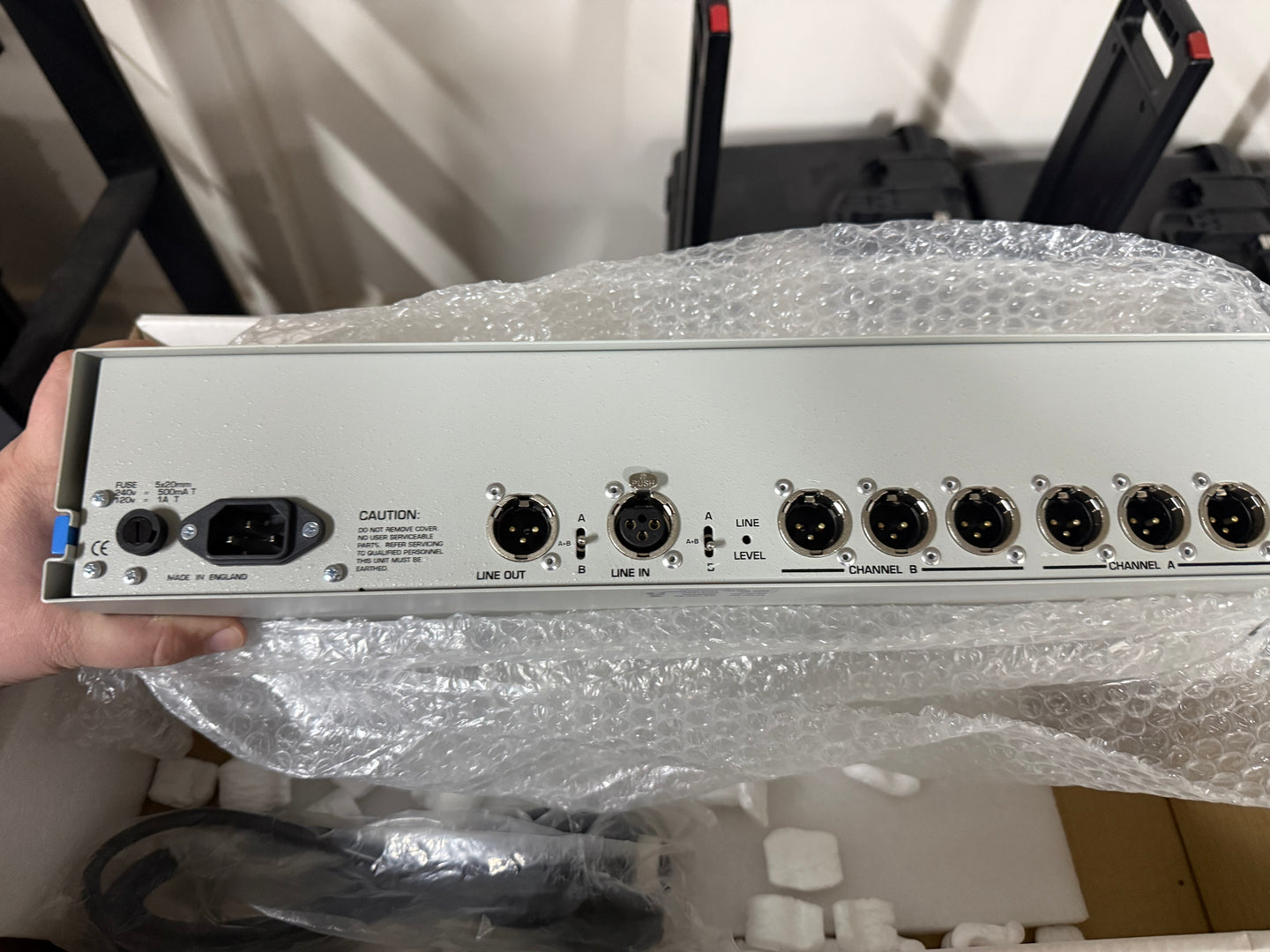

Connectors Rear: Line out, 6 x 3 pin male XLR
                                        Aux. out, 3 pin female
                                        XLR Line in, 3 pin female XLR
Auxiliary Input: Mixed onto both channels, mic to suit 200 ohms types 10k Ohm per leg balanced.                                      25mV sensitivity
Dimensions (mm): 2U 19" Rackmount 483 x 132 x 196
Weight: 7 kg

Condition Guide. All Stage Gear products are professionally inspected and tested before shipment.

- Clearance: Brand new, unused inventory that is discontinued or no longer stocked.
- B-Stock: Open-box, demonstration, or lightly used equipment. Fully tested, complete, and in excellent working condition. May show minor cosmetic wear.
- C-Stock: Professionally used equipment. Fully tested and operational with moderate cosmetic wear consistent with normal use.
- D-Stock: Functional B- or C-Stock equipment with cosmetic wear and/or missing accessories. Included components are listed on the product page and additional items may be required before use.

All used equipment is sold in the condition identified on this product page. All sales are final once shipped. No returns, exchanges, or refunds are permitted except as provided noted here. For any Clearance, B-Stock or C-Stock items, these are professionally tested and backed by a 90-day limited warranty against functional defects. Approved warranty claims require the item to be returned to Stage Gear for evaluation. At our discretion, the item will be repaired, replaced, or store credit will be issued. No cash refunds. For D-Stock, these are sold AS IS with no warranty, no returns, no exchanges, and no refunds. For the avoidance of doubt, any cosmetic wear, packaging condition, and other characteristics consistent with the item's condition grade are not considered defects.
