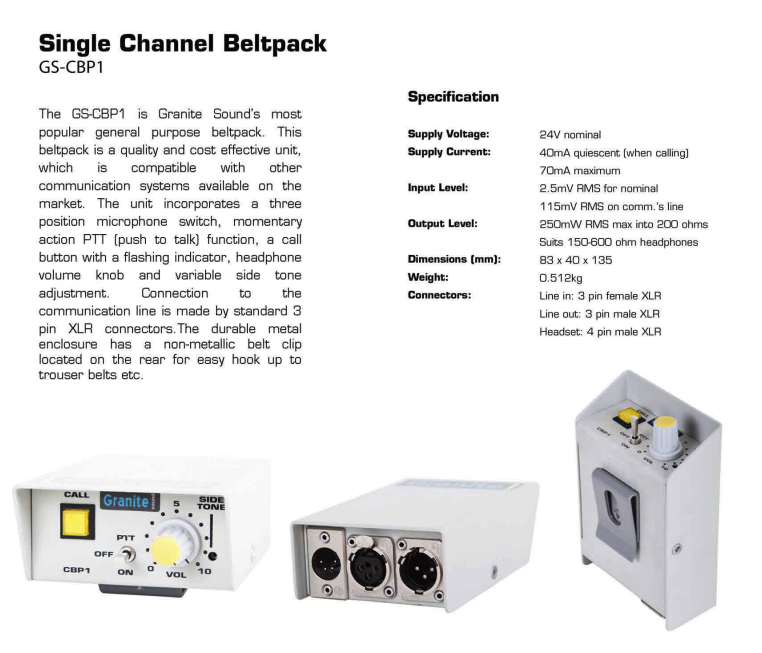

Granite Sound Partyline Intercom - Single Channel Beltpack GS-CBP1

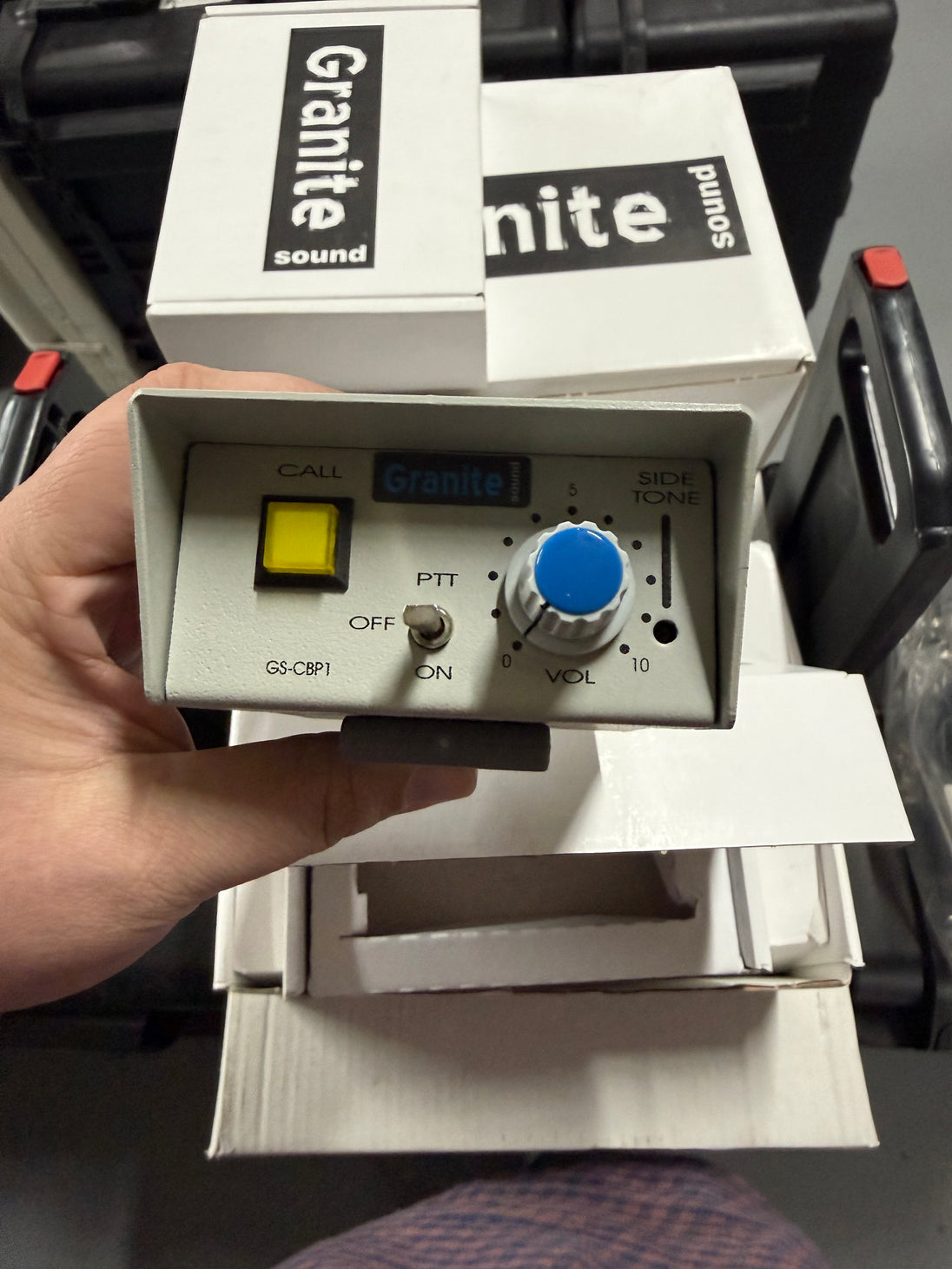

The GS-CBP1 is Granite Sound's most popular general purpose beltpack. This beltpack is a quality and cost effective unit, which is compatible with other communication systems available on the market. The unit incorporates a three position microphone switch, momentary action PTT (push to talk) function, a call button with a flashing indicator, headphone volume knob and variable side tone adjustment. Connection to the communication line is made by standard 3 pin XLR connectors. The durable metal enclosure has a non-metallic belt clip located on the rear for easy hook up to trouser belts etc.

Specification

Supply Voltage: 24V nominal
Supply Current: 40mA quiescent (when calling)
                                    70mA maximum
Input Level: 2.5mV RMS for nominal
                           115mV RMS on comms line
Output Level: 250mW RMS max. into 200 ohms
                               Suits 150-600 ohm headphones
Dimensions (mm): 83 x 40 x 135
Weight: 0.512 kg

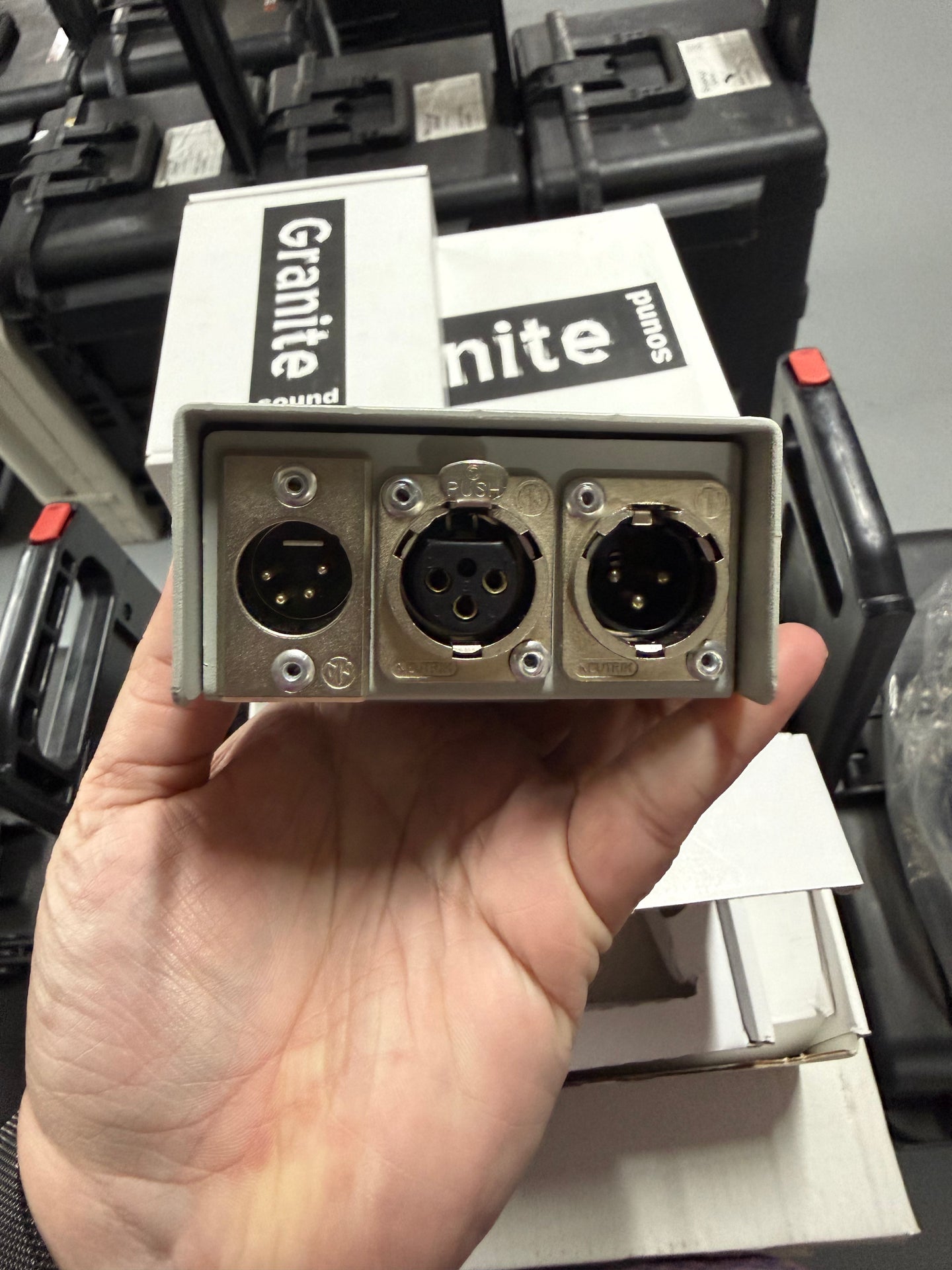

Connectors: Line in, 3 pin female XLR
                             Line out, 3 pin male XLR
                             Headset, 4 pin male XLR

Condition Guide. All Stage Gear products are professionally inspected and tested before shipment.

- Clearance: Brand new, unused inventory that is discontinued or no longer stocked.
- B-Stock: Open-box, demonstration, or lightly used equipment. Fully tested, complete, and in excellent working condition. May show minor cosmetic wear.
- C-Stock: Professionally used equipment. Fully tested and operational with moderate cosmetic wear consistent with normal use.
- D-Stock: Functional B- or C-Stock equipment with cosmetic wear and/or missing accessories. Included components are listed on the product page and additional items may be required before use.

All used equipment is sold in the condition identified on this product page. All sales are final once shipped. No returns, exchanges, or refunds are permitted except as provided noted here. For any Clearance, B-Stock or C-Stock items, these are professionally tested and backed by a 90-day limited warranty against functional defects. Approved warranty claims require the item to be returned to Stage Gear for evaluation. At our discretion, the item will be repaired, replaced, or store credit will be issued. No cash refunds. For D-Stock, these are sold AS IS with no warranty, no returns, no exchanges, and no refunds. For the avoidance of doubt, any cosmetic wear, packaging condition, and other characteristics consistent with the item's condition grade are not considered defects.
