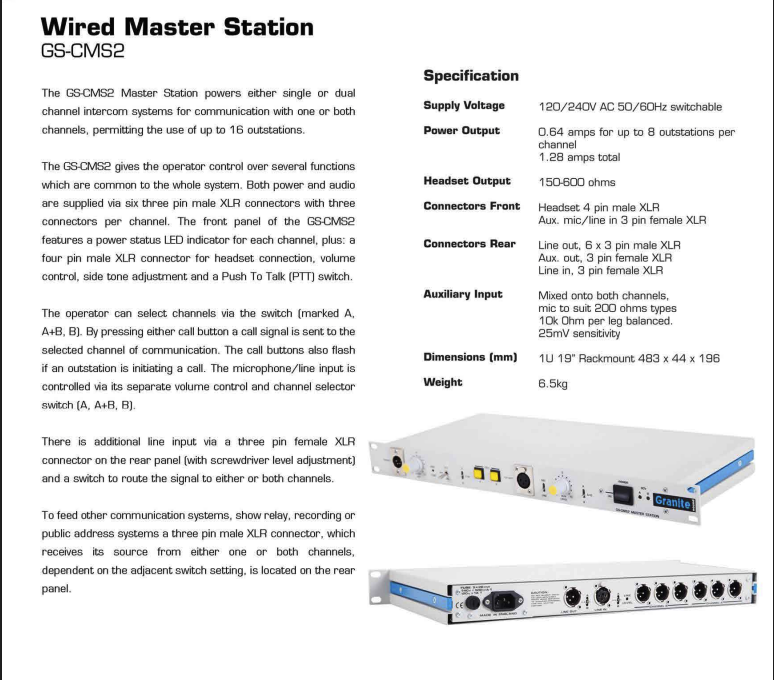

Granite Sound Partyline Intercom - Wired Master Station GS-CMS2

The GS-CMS2 Master Station powers either single or dual channel intercom systems for communication with one or both channels, permitting the use of up to 16 outstations.

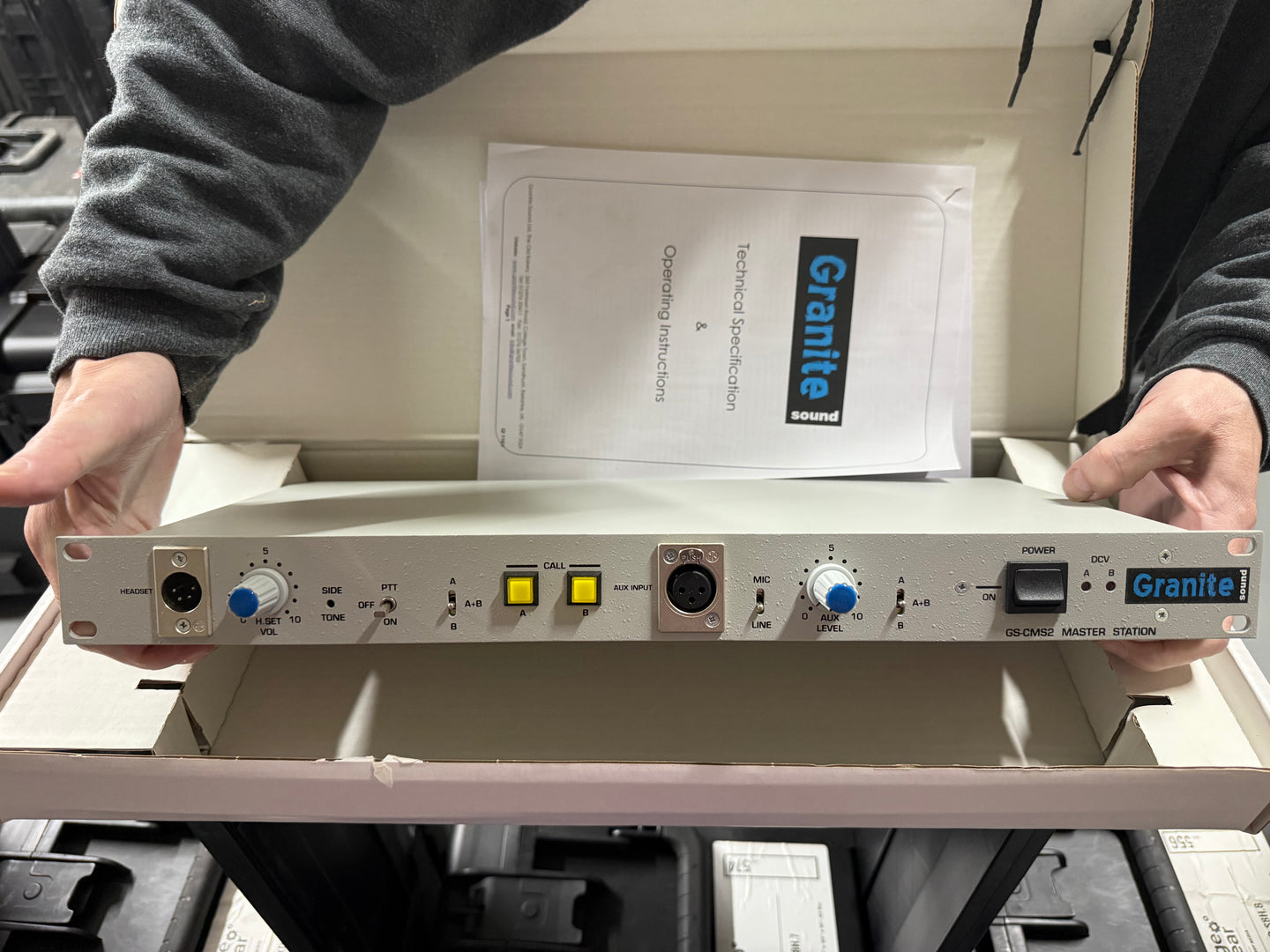

The GS-CMS2 gives the operator control over several functions which are common to the whole system. Both power and audio are supplied via six three pin male XLR connectors with threе connectors per channel. The front panel of the GS-CMS2 features a power status LED indicator for each channel, plus: a four pin male XLR connector for headset connection, volume control, side tone adjustment and a Push To Talk (PTT) switch.

The operator can select channels via the switch (marked A, A+B, B). By pressing either call button a call signal is sent to the selected channel of communication. The call buttons also flash if an outstation is initiating a call. The microphone/line input is controlled via its separate volume control and channel selector switch (A, A+B, B).

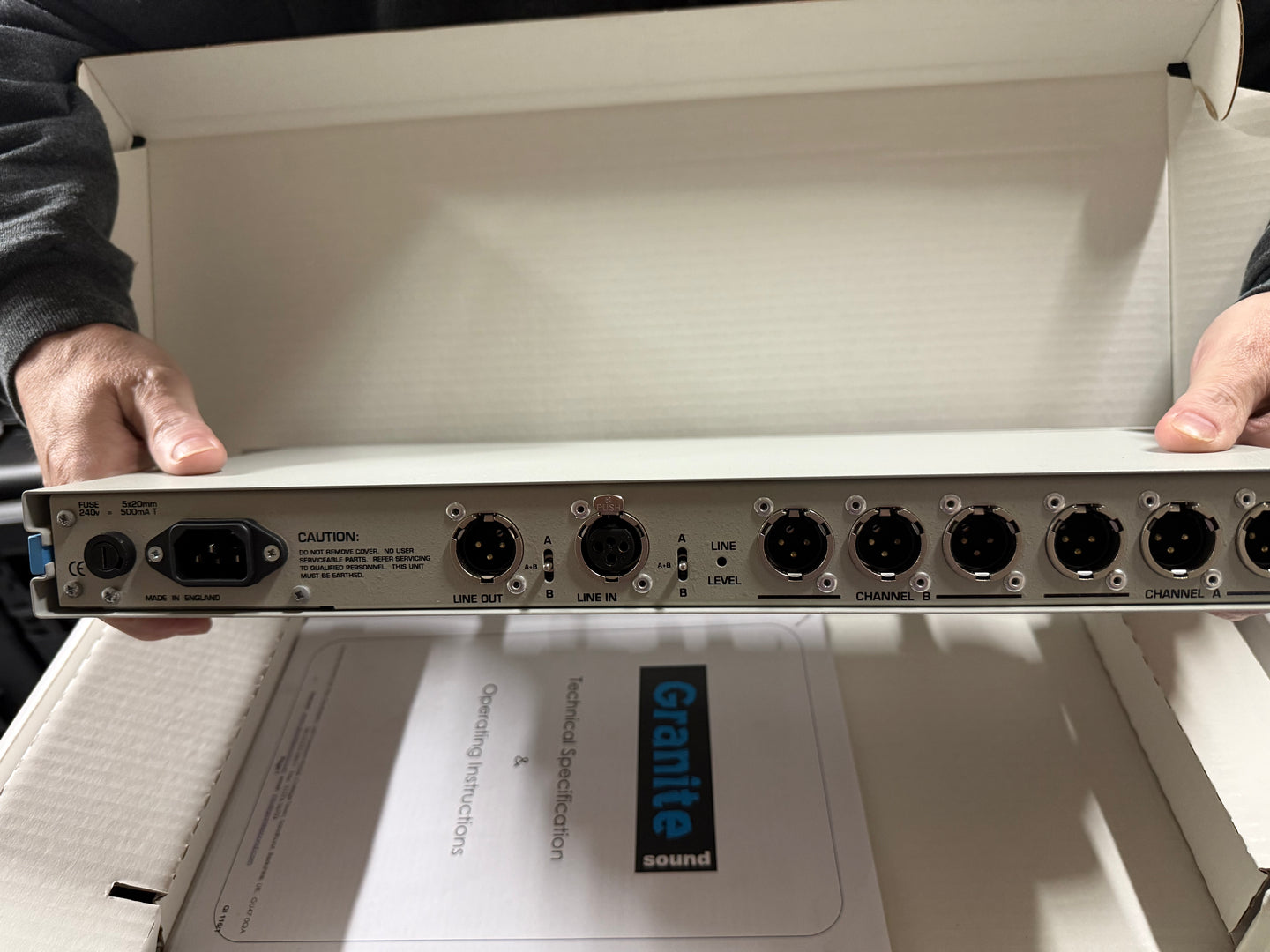

There is additional line input via a three pin female XLR connector on the rear panel (with screwdriver level adjustment) and a switch to route the signal to either or both channels.

To feed other communication systems, show relay, recording or public address systems a three pin male XLR connector, which receives its source from either one or both channels, dependent on the adjacent switch setting, is located on the rear panel.

Specification

Supply Voltage: 120/240V AC 50/60Hz switchable
Power Output: 0.64 amps for up to 8 outstations per channel 1.28 amps total
Headset Output: 150-600 ohms
Connectors Front: Headset 4 pin male XLR
                                          Aux. mic/line in 3 pin female XLR

Connectors Rear: Line out, 6 x 3 pin male XLR
                                       Aux. out, 3 pin female XL
                                       Line in, 3 pin female XLR

Auxiliary Input: Mixed onto both channels, mic to suit 200 ohms
                                    types 10k Ohm per leg balanced.
                                    25mV sensitivity
Dimensions (mm): 1U 19" Rackmount 483 x 44 x 196
Weight: 6.5 kg
